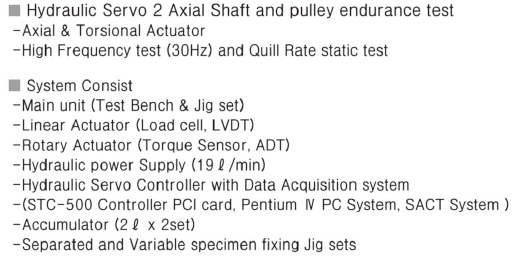

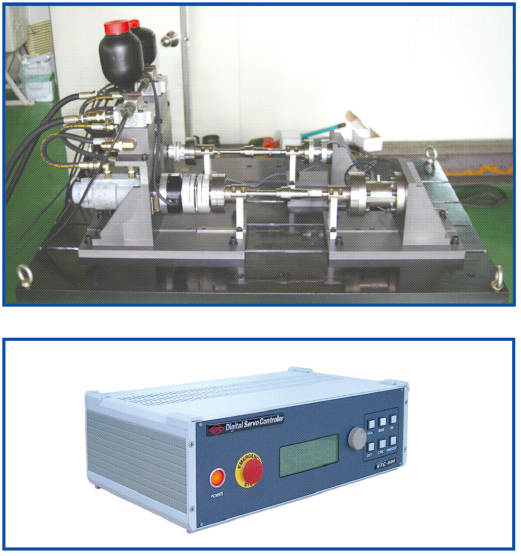

 Quill Shaft Endurance Tester
|
| |
Untitled Document
 |
| |

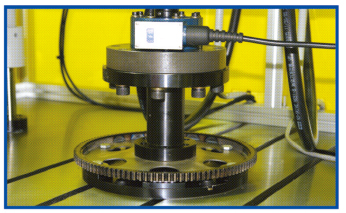

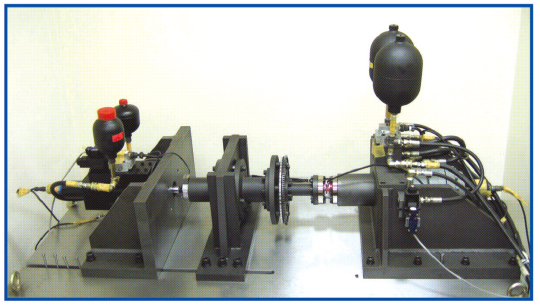

Flywheel Endurance Tester
- Specification
| Model |
STC-RL10 |
Actuator |
Axia(Linear) Actuator |
Torsional (Rotary) Actuator |
| Max. Load (Torque) |
10kN |
10kN.M |
Stroke (Angle) |
50mm |
360 |
| Load Cell (Torque Sensor) |
10kN, 0.1% |
10kN.M |
LVDT |
50mm, 0.05% |
0.1% |
Servo valve |
Moog 63/min |
Moog 63/min |
Test Frequency |
40Hz |
40Hz |
| Hydraulic power unit |
STC-P1 19 at 100 barFilter & Cooling unit |
|
Area of histerisis curve(kg/) |
2 |
|
| Main Frame unit(Bench & Jin set) |
STC-500 Controller |
|
Digital Servo Controller
With Data Acquisition |
N.I 16bit PCI Card, Pentium IV, PC System
SACT Opera & Data Acquisition program |
|
|
| |
Untitled Document
 |
| |

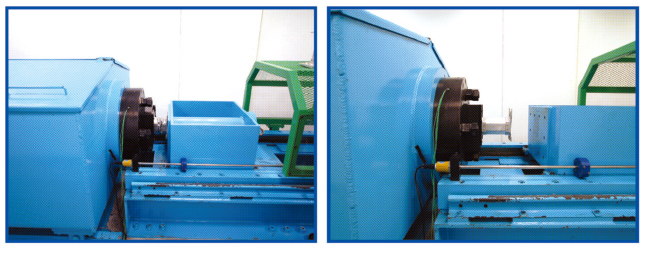

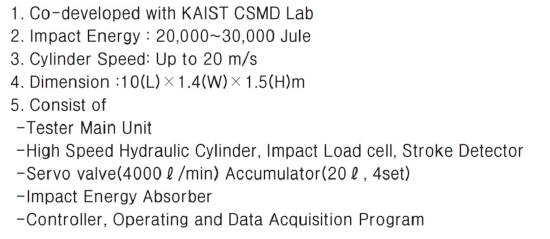

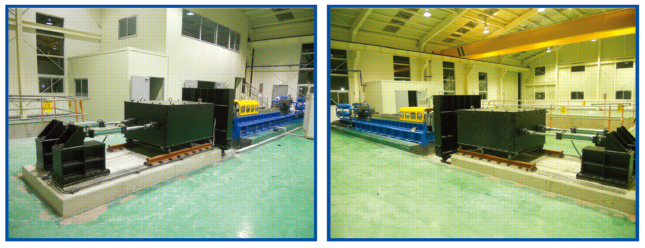

Hydraulic High Speed Tester
|
| |
Untitled Document
 |
| |
System
- Specification
| Item. |
STC-RL10 |
Linear |
Load |
Static : 2.5 ton |
| Dynamic : 3.0 ton |
| Stroke |
min. 200mm |
| Speed |
0~12m/sec |
| Control of Speed |
Velocity Control, Displacement Control, Open-loop Control, Servo Control |
| Interior Inpact 'g' |
Max.50g |
Angular |
Load |
Static : 1.6 ton |
| Dynamic : 2.0 ton |
Stroke |
30~95degree in rotation movement |
| Speed |
0~12m/sec |
Control of Speed |
Velocity Control, Displacement Control |
| Interior Inpact 'g' |
Max.50g |
Accumulator |
20 4ea |
| Servo Valve |
1500 2ea |
| Control System |
1. Positioning : Manual & Automaticaly |
| 2. Method of Input Order : Internal & External Signal input |
| 3. Monitoring before test : Control limit data for varible input data |
| 4. Storage of Data : ASC fine |
| 5. Print : Displacement, Angle, Speed vs time in each channels |
| Controller |
1. STC-5000 Servo & Open-loop Control |
| 2. High speed data Acquisition PCI card |
| 3. SACT control & Data Acquisition program |
| 4. Pentium PC system |
|
| |
Untitled Document
 |
| |

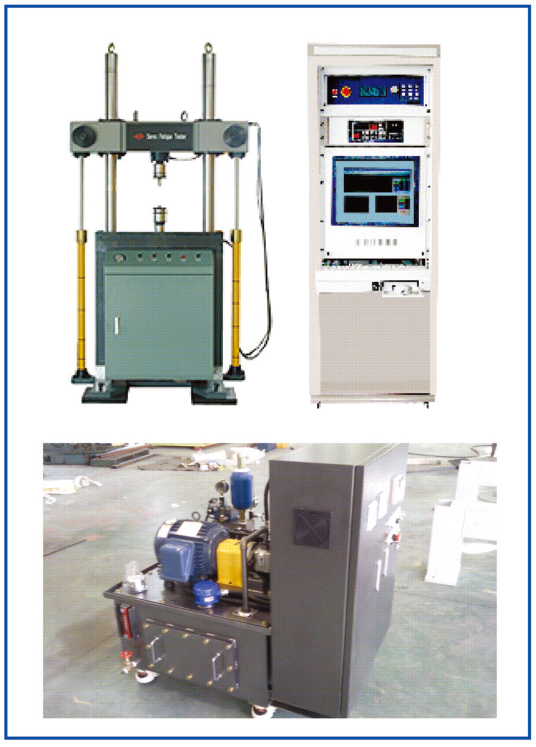

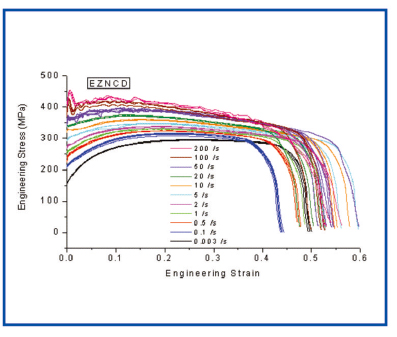

High Rate Strain Tester

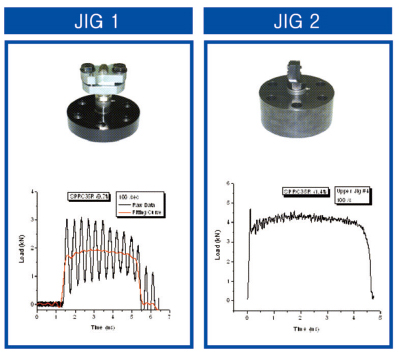

JIG

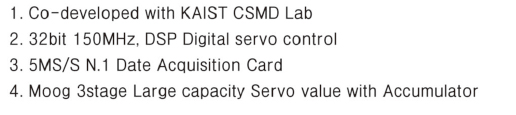

System advantage
- Specification
| Item. |
STC-ht700 |
STC-ht700 |
STC-ht700 |
STC-ht700 |
Max testing Speed |
7m/sec |
15m/sec |
20m/sec |
25m/sec |
| Max. load |
30KN, 65KN, 100KN |

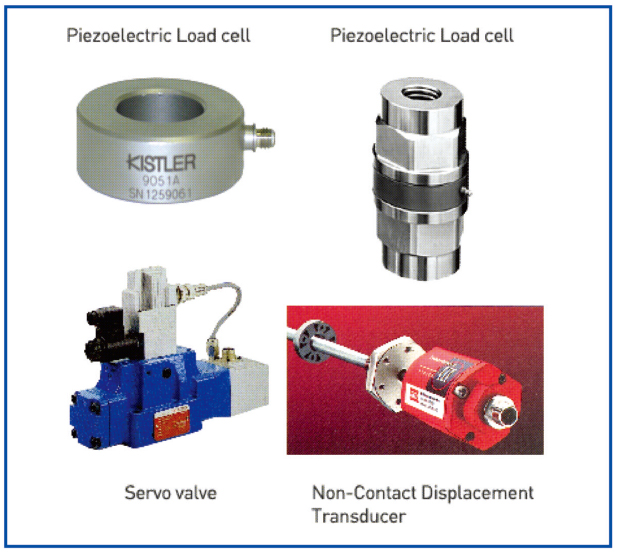

| Piezo electric load cell |
90KN, 150KN, 400KN |
| Servo valve |
moog, 500-3000l/mm, fast response type |
| Dynamic actuator |
hydrostatic bearing, anti shoocking, double acting type-load: 45kN,100kN,150kN stroke:300mm |
LVDT |
high frequency(8KHz-1MHz),300mm, 0.001% |
| loading frame |
high stiffness, cross head moved by hydraulic linder approx.
size: 2,300~2,500(h)mm,1000(w) 600(d)mm |
| Hydraulic pumt unit |
STC-p3(60/m), STC-p5(120l/m) built in sppressorfor shocking, pulsation noisa. 3 filter unit |
| Accumulator |
10l,4l 3~6 pcs : according to model |
| Tension jig |
anti-shock, anti-vibration digital servo |
Digital servo controller |
STC-500, 32 bit 60MHz DSP processor |
| Data acquisition unit |
n.i. 5ms/s, 4 input channel PCI board pc system, 19inch rack |
| Program |
SACT ver.2 |
|
| |
|
| |
| |
|
